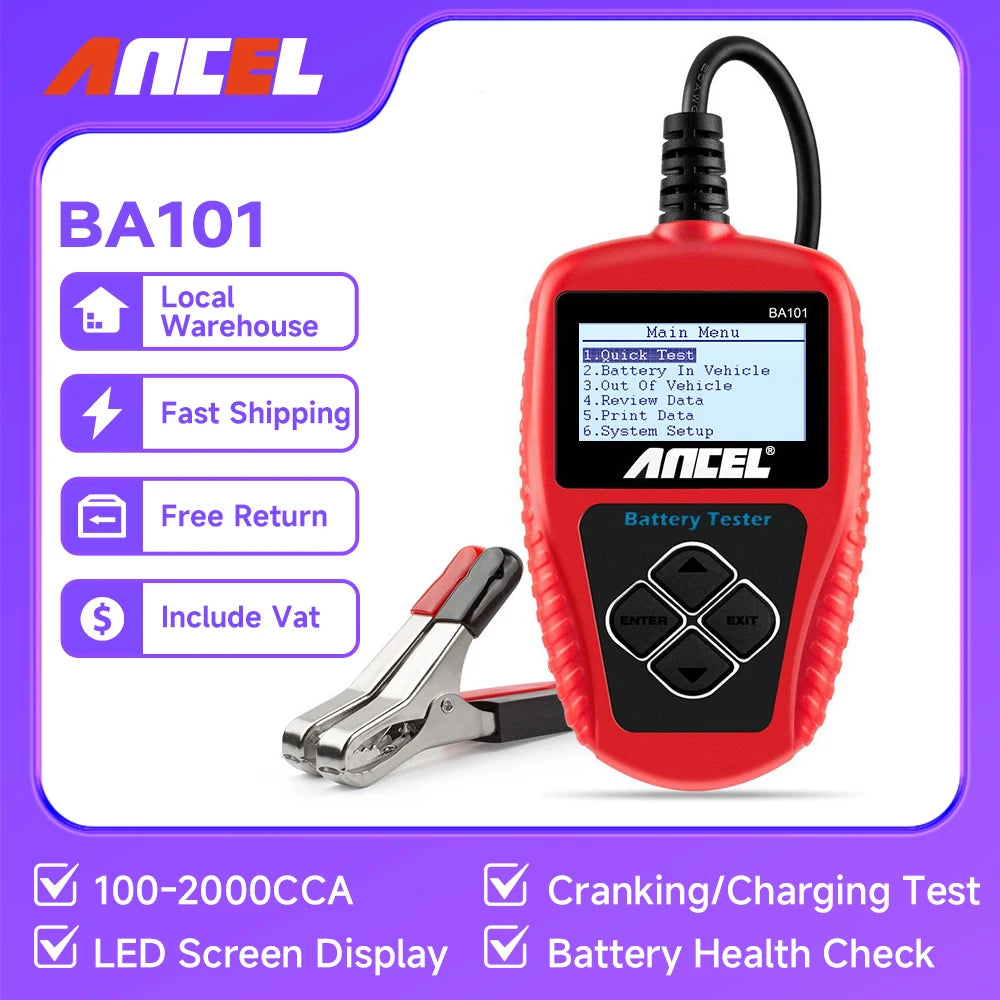

Ancel BA101 Car Battery Tester 12V 100-2000CCA 220AH Auto Load Battery Analyzer Multi languages Car Battery Charging Tester
Ancel BA101 Car Battery Tester 12V 100-2000CCA 220AH Auto Load Battery Analyzer Multi languages Car Battery Charging Tester
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: ANCEL
Certification: CE
Measuring range: 100-2000CCA
Support Languages: English, Spanish, French, German, Italian, Polish
Warranty: 2 years
Ancel BA101 Car Battery Tester 12V 100-2000CCA 220AH Auto Load Battery Analyzer Multi languages Car Battery Charging Tester
Ancel BA101 Battery Tester Functions&Benefits
Accurate tester result in miliseconds (tolerance plusmn15)

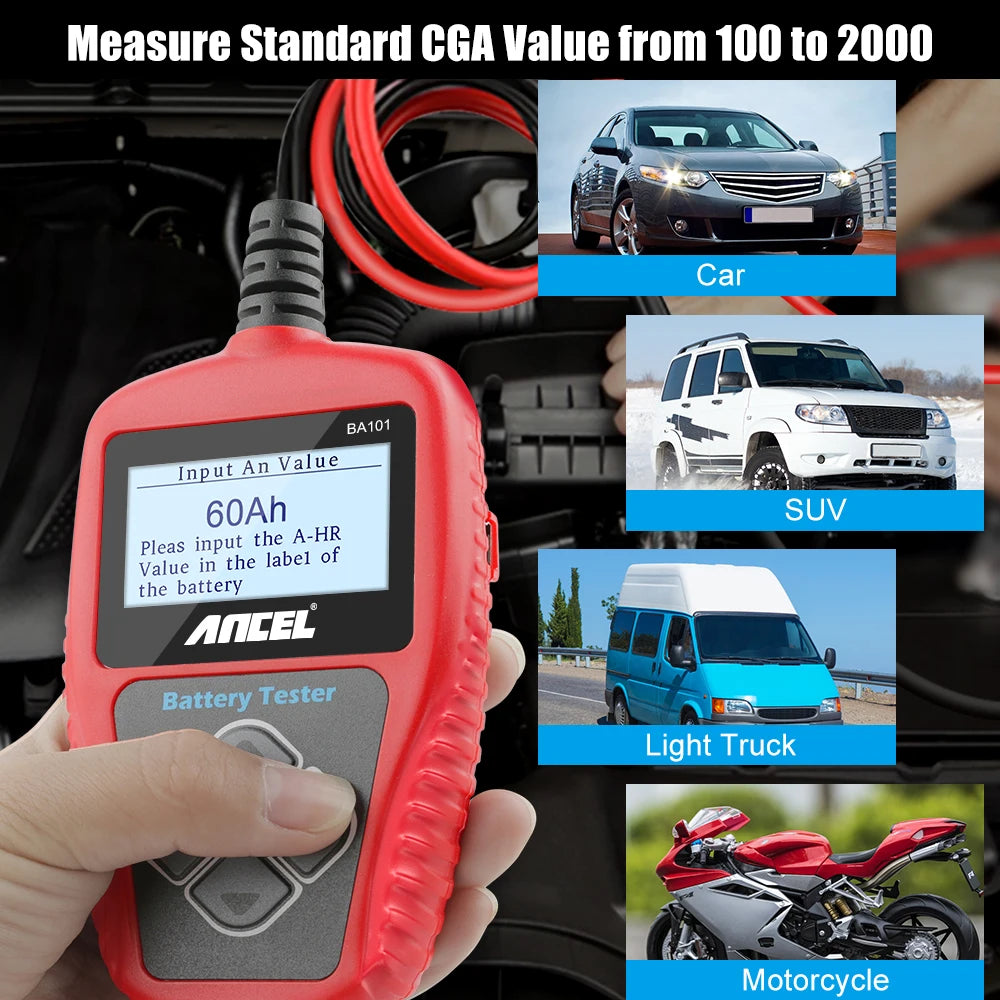

BA101 can test CCA100-2000, 30-220Ah, which is the highest CCA in the market
Test batterues on and off the vehicle
Battery life analysis, result : good or replace

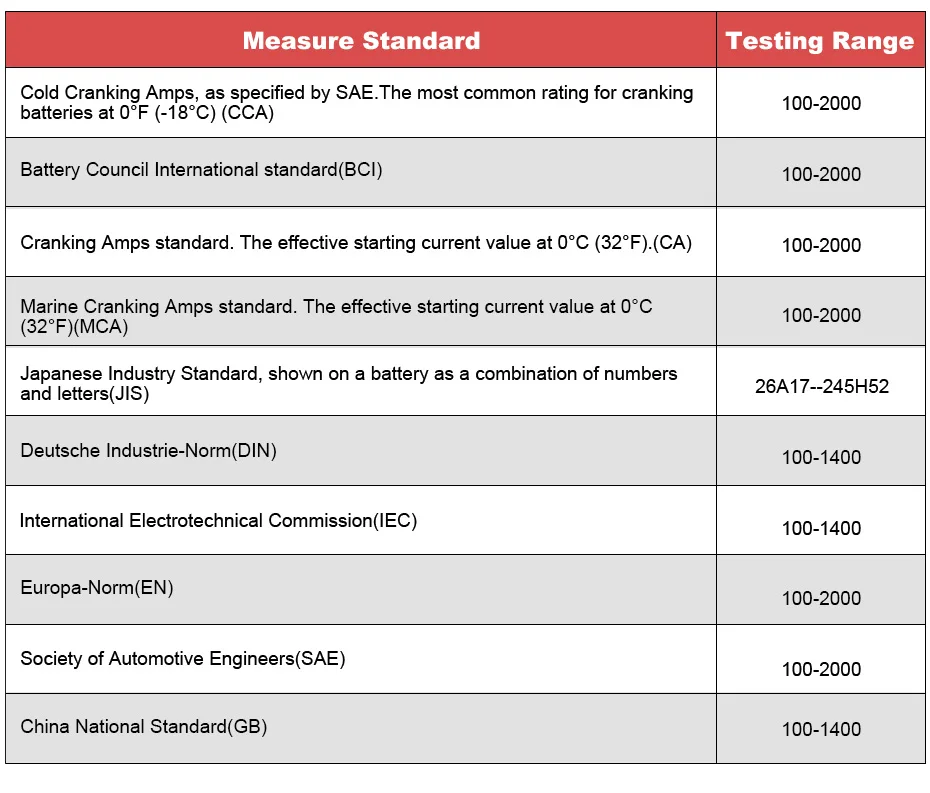

Test result based on JIS, EN, DIN, SAE and IEC standards.
Easily read LCD screen display
Quick test - input battery volume (AH), then it can show the battery status.

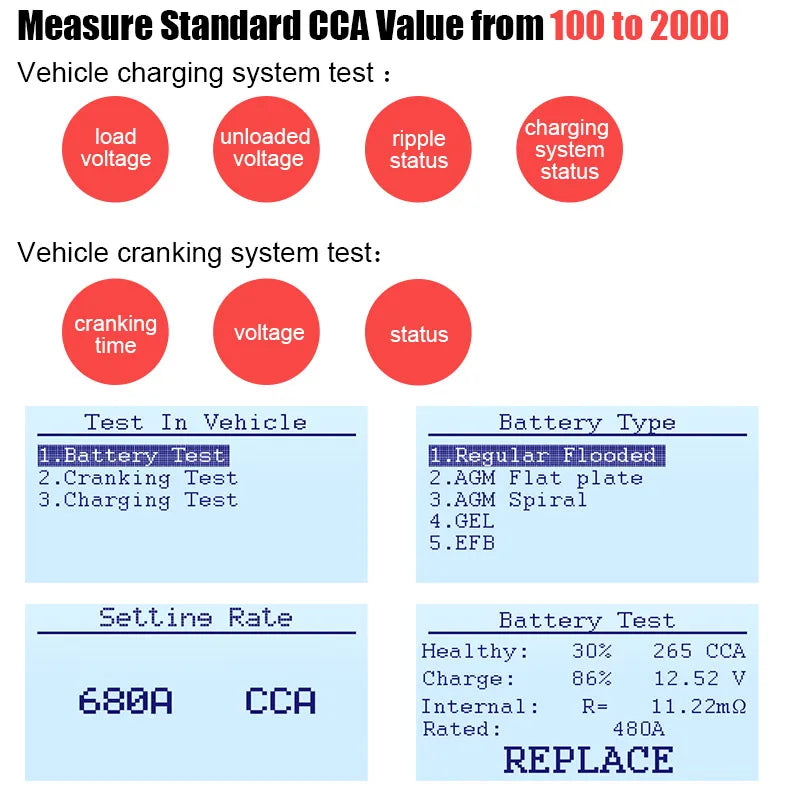

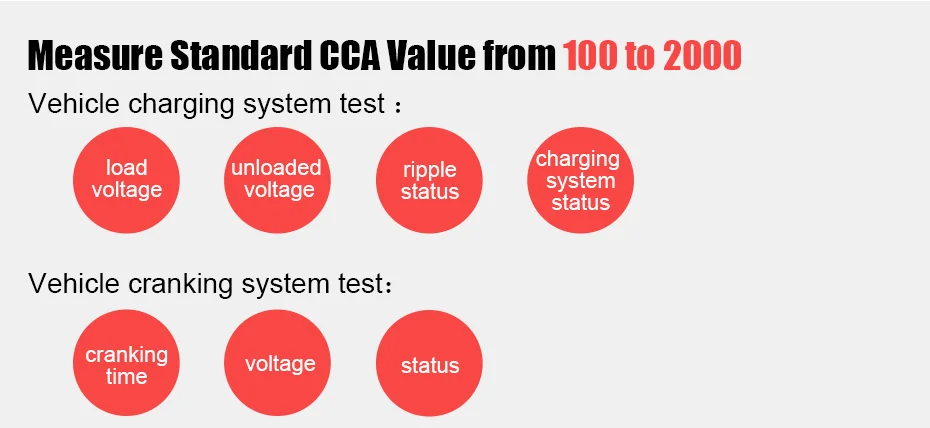

Vehicle cranking system test - cranking time, voltage and status.
Vehicle charging system test - load voltage, unloaded voltage, ripple status and charging system status.

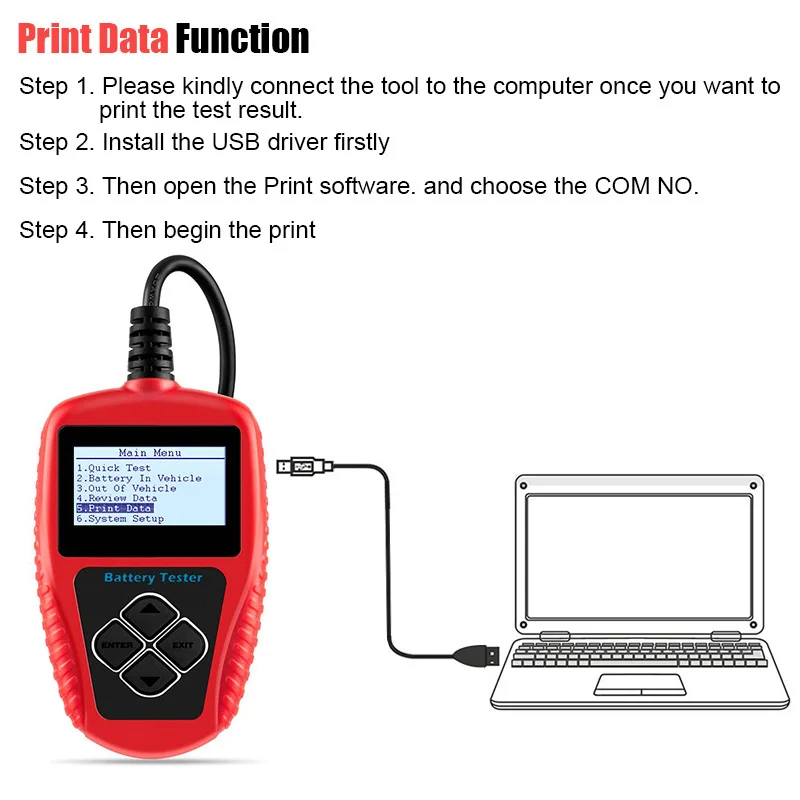

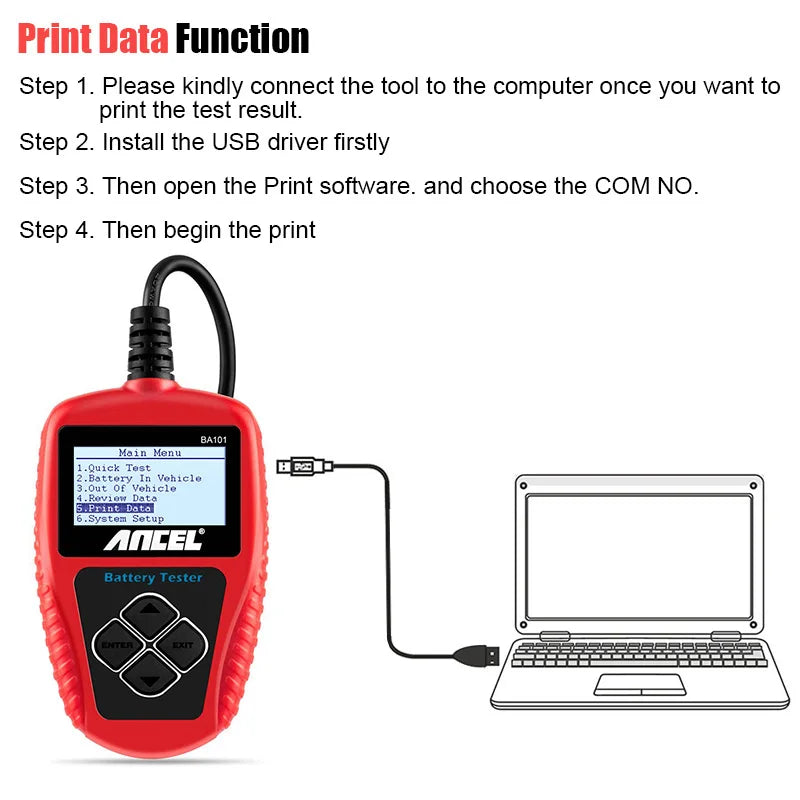

Store the testing result, print function

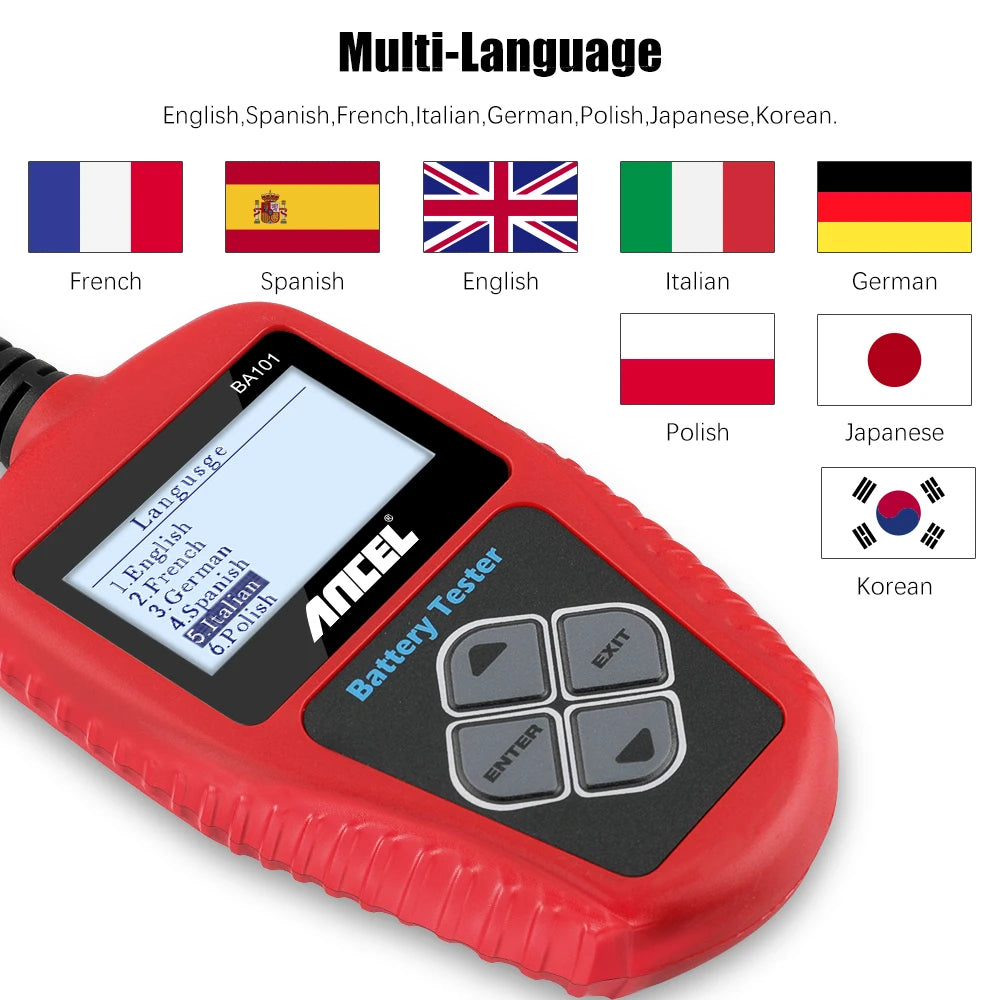

Two Versions Available(Language different only)
European Version: English, Spanish, French, German, Italian, Polish
Asian Version: English Japanese, Korean, Chinese
Operating Parameters
System voltage: 12 Volts
Input voltage range: 9V~15V
Power requirements: No internal batteries required. Power on when hooked up during testing.
AH range: 30-220AH
Application
Use to test a wide range of 12V batteries (Starting [SLI], Deep Cycled and Marine) of Wet (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM) and GEL cell. The major battery standards JIS, SAE, EN, DIN and IEC are supported.
How use Ancel BA101 Battery Tester Fast ?

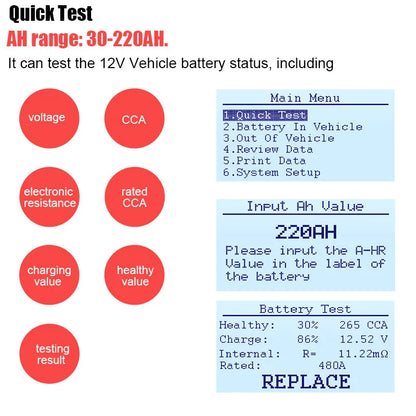

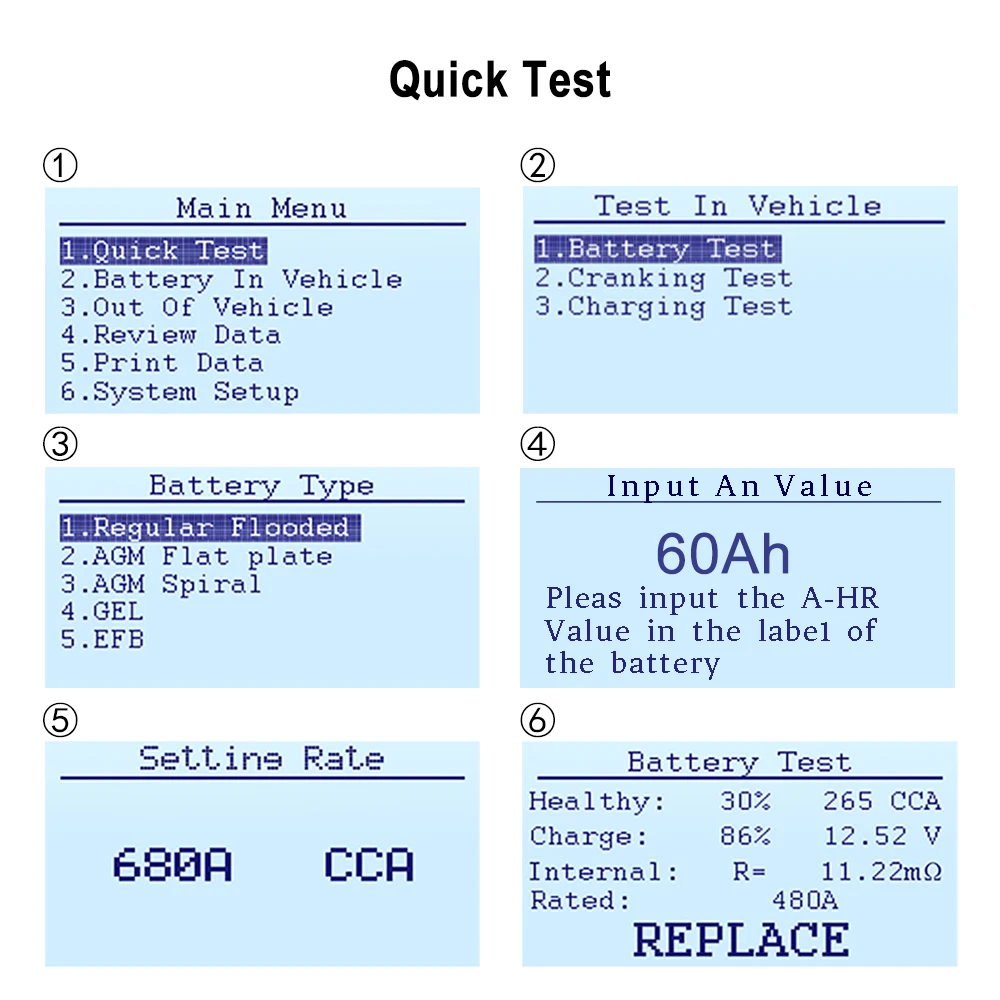

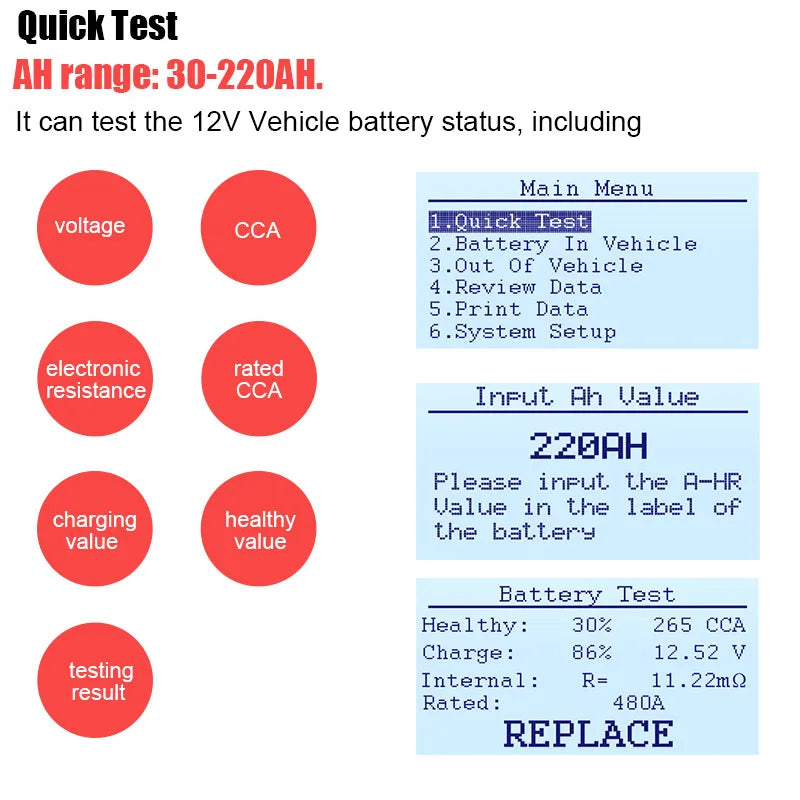

Quick Test
It can make sure the battery status, including voltage, CCA, electronic resistance, rated CCA, charging value, healthy value and testing result in one second. Once input the AH valuemdashbattery rated capacity, which is marked in the label of the battery.

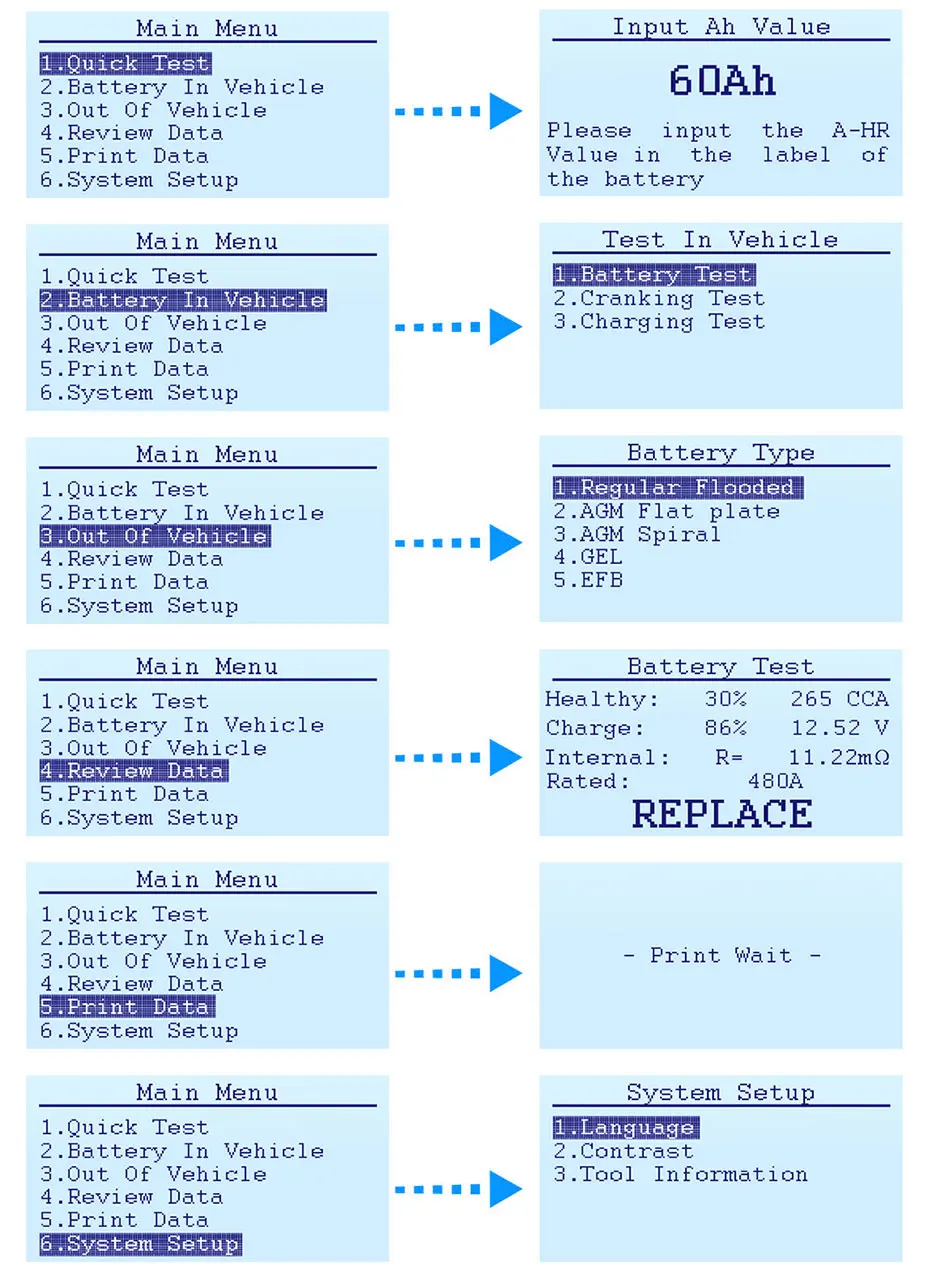

1.Press UP/DOWN key to select the Quick test, then press ENTER key to confirm.

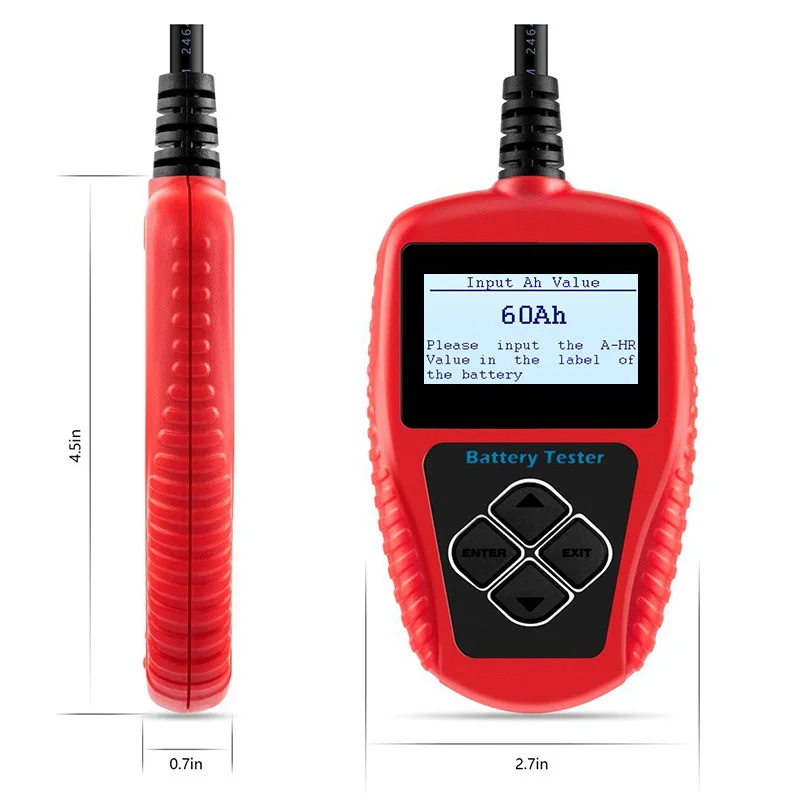

2.Input the rated battery capacitymdashxx AH, in general, the battery capacity for 12V vehicle is above 30AH.
3.Then press enter key, the testing result will show one of these, as below Battery test result includes 5 tys as following:
Good Battery: The battery is without any problem, please be relaxed to use

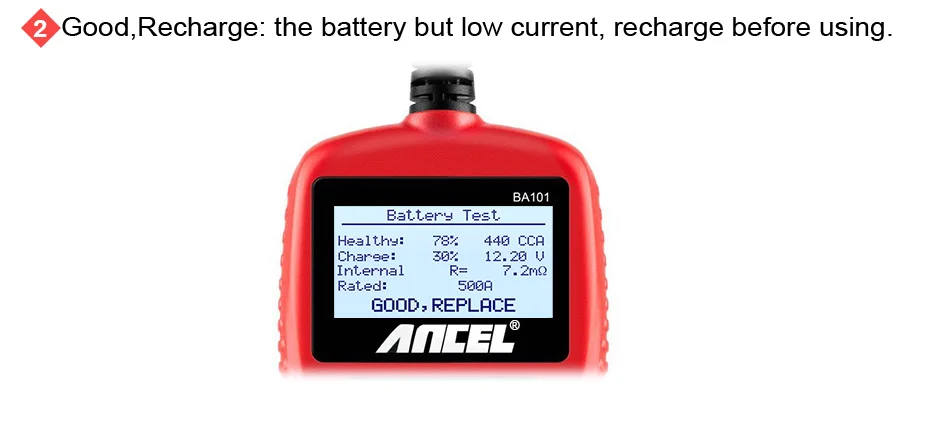

Good, Recharge: Good battery but low current, recharge before using.

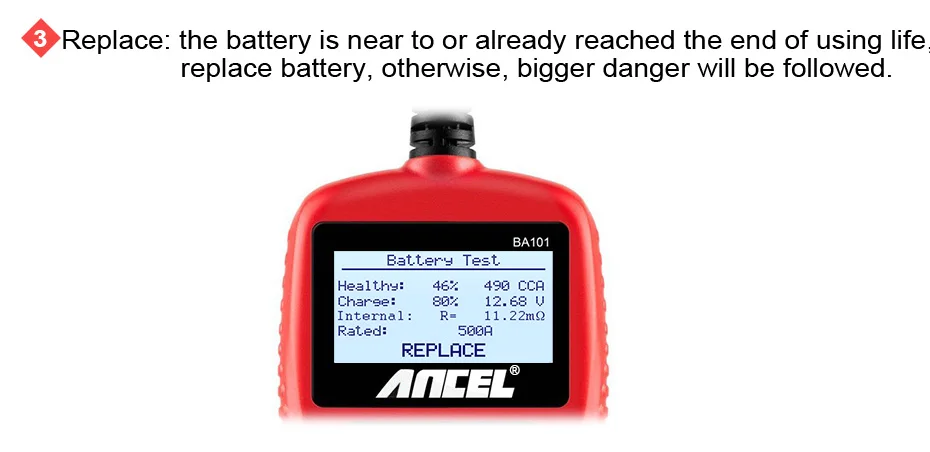

Replace: The battery is near to or already reached the end of the using life, replace battery, otherwise, bigger danger will be followed.

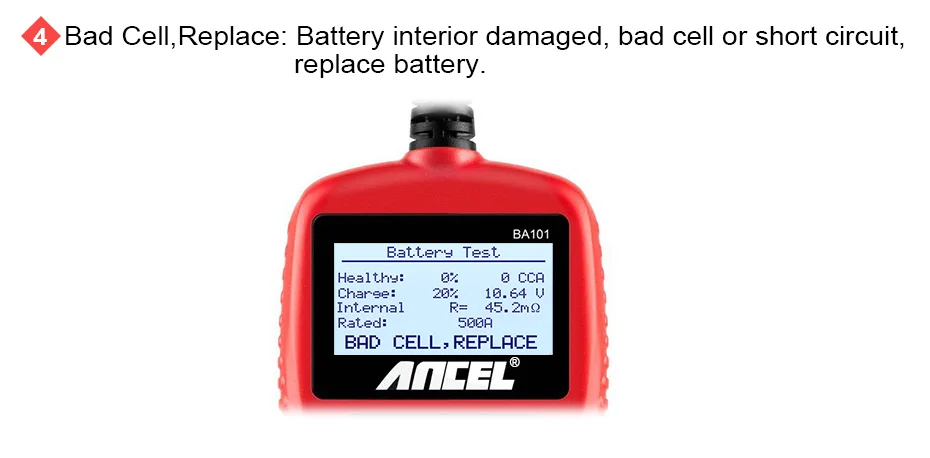

Bad Cell, Replace:Battery interior damaged, bad cell or short circuit, replace battery.
